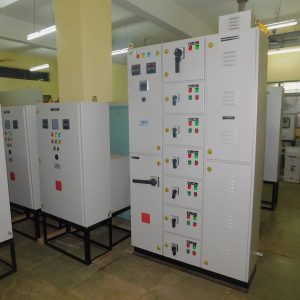

Main LT Panel

Features :

  • Efficient Power Management
  • Easy installation
  • low maintenance
  • Sturdy Construction
Click Here To Get A Quote

Description

Description: Main L.T panels are considered the heart of the electrical supply system in any installed network of electrical distribution. The secondary side of transformer is connected to the incomer of the Main L.T Panel. Its main purpose is to distribute power efficiently to critical loads and other sub-distribution panels. Usually consists of circuit breakers, isolators and bus couplers. We design, manufacture and supply good quality Main L.T panels in accordance with customer’s specification and at reasonable price with the necessary safety requirements. They can be installed indoors / outdoors of the plant or facilities and have exceptional ability to withstand different climatic condition

Used In:

  • Pharmaceutical Plants
  • Airports & Railways
  • Chemical/Oil/Gas Plants
  • Commercial & Residential buildings
  • Malls
  • Hospitals

Panel Specifications

Voltage 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System
Construction Type Cubicle Design / Floor Standing
Enclosure Fabricated with 1mm/1.6mm/2mm/2.5mm/3mm CRCA MS sheet
Degree of Protection IP 4X/5X/6X
Busbar Electrolytic Grade Aluminium / Electrolytic Grade Copper / Tinned Electrolytic Grade Copper –provided with colored PVC sleeves & of standard current density (1A/sq.mm for Aluminium & 1.6A/sq.mm for Copper)or customer specified current density
Enclosure Color RAL 7032 Shade (Industrial Standard) / Customer Specified Color
