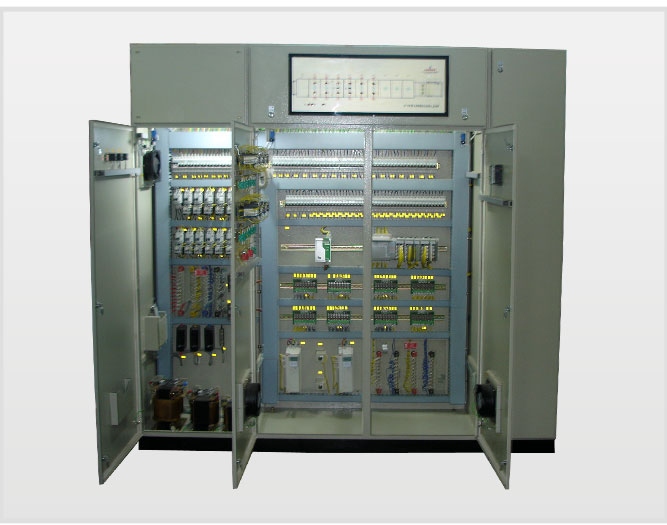

Annunciator & Mimic Control Panel

Features :

  • LEDs can be provided with inbuilt power supply.
  • Easy installation
  • Alterations are possible
  • Pictorial Charts of the process on the front side of the panel
  • Robust construction.
  • Panels are provided with visual indications to show any failure /change in process.
Click Here To Get A Quote

Description

Description: Highly advanced & efficient Annunciator Panels and Mimic Control Panels are designed and manufactured as per our client’s specifications at our manufacturing unit with the latest technology. Annunciator Panels are generally used as a centralized warning panel to indicate the status of the connected electrical loads or processes in any industry plant/processing unit.  The status indication is achieved through the use of visual and audio alarms. Mimic Panels usually have a flow chart of the entire process displayed on the front side of the panels. They are used to monitor & show the status of any given process in real time basis from one location and have efficient LED lights and push buttons as indicators.
Used In:

  • Process Units
  • Utility Plants
  • Sewage Plants
  • Airports
  • Railways
  • Manufacturing Units
  • Chemical Plants
  • Pharmaceutical Plants

Panel Specifications

Voltage 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System
Construction Type Wall Mounted / Cubicle Design / Floor Standing
Enclosure Fabricated with 1mm/1.6mm/2mm/2.5mm/3mm CRCA MS sheet
Degree of Protection IP 4X/5X
Enclosure Color RAL 7032 Shade (Industrial Standard) / Customer Specified Color
